Description

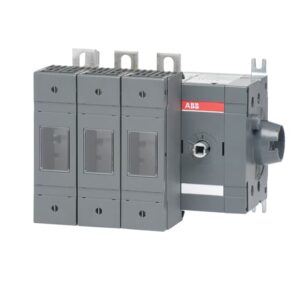

Switch-disconnector fuse, 125A, 3-pole, NFC 22×58, side operated.
OS125GFS30 SWITCH FUSE
749.00 AED
OS125GFS30 SWITCH FUSE
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 749.00 AED |
| 6 - 10 | 734.02 AED |
| 11 - 50 | 719.04 AED |
| 51 - 200 | 704.06 AED |
| 200+ | 689.08 AED |
Out of stock
- ✅ Free global shipping on all orders
- ✅ 30 days easy returns if you change your mind
- ✅ Order before noon for same day dispatch
Guaranteed Safe Checkout
Description
Additional information
Additional information
| Weight | 1.6 kg |
|---|---|
| Dimensions | 13 × 18.2 × 14 cm |
| Extended Product Type | OS125GFS30 |
| Standard | IEC 60947-3 |
| Number of Poles | 3P |
| Rated Current | 125A |
| Rated Voltage | 690VAC |
| Mounting | Base mounting |
| Fuse system | NFC |
| Degree of Protection IP | IP20 |
| Mounting Type | Base mounting |
| Terminal Type | Lug terminals |
| Product Net Depth (MM) | 13 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 1 |
| Operating mode | Side |
| GTIN (EAN) | 6417019482439 |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Country of Origin | Finland |
| Handle Type | Handle Not Included |
| Package Level 1 Depth / Length | 25 cm |
| Package Level 1 Gross Weight | 2.2 kg |
| Package Level 1 Height | 15.5 cm |
| Package Level 1 Width | 17 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out, Bottom In – Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 125 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 125 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 125 A |
| Rated Operational Power AC-23A (Pe) | (220 … 240 V) 37 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Switches Operating Mechanism | 30 (Right Side) |
| Terminal Width | 2 cm |
| Tightening Torque | 15 … 22 N·m |
