Additional information
| Weight | 1.422 kg |
|---|---|
| Dimensions | 11.5 × 21 × 26.6 cm |

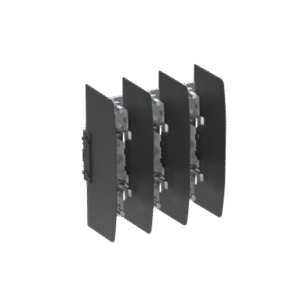

| Extended Product Type | OFAZ2P3 |
| Standard | IEC |
| Number of Poles | 3P |
| Rated Current | 400A |
| Rated Voltage | 690VAC |
| Mounting | Baseplate |
| Fuse system | DIN |
| Degree of Protection IP | IP00 |
| Mounting Type | Baseplate |
| Terminal type | Bolt |
| Product Net Depth (MM) | 11.5 cm |
| Customs Tariff Number | 85389099 |
| Minimum Order Quantity | 1 |
| GTIN (EAN) | 6.41702E+12 |
| L1 | Electrical |
| L2 | Power Distribution |
| L3 | Fuses & Fuse Holders |
| Country of Origin | Slovenia |
| Package Level 1 Depth / Length | 24.8 cm |
| Package Level 1 Gross Weight | 1.66 kg |
| Package Level 1 Height | 15.4 cm |
| Package Level 1 Width | 28 cm |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 45 W |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 1000 V AC |
| Special Functions | IP00, with phase barriers |
| Tightening Torque | acc. IEC 60947-1 32 N·m |
