Description

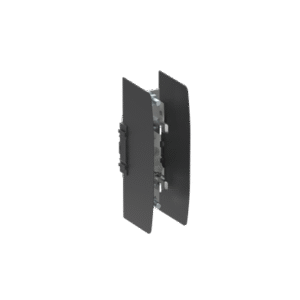

ABB OFAZ1P1, Fuses & Fuse Holders — manufacturer part number 1SCA151160R1001.
Fuse Base, Size 1, Open with phase barriers IP 00, 1-pole
Technical data
- Brand: ABB
- Manufacturer part number: 1SCA151160R1001
- Extended Product Type: OFAZ1P1
- Standard: IEC
- Number of Poles: 1P
- Rated Current: 250A
- Rated Voltage: 690VAC
- Mounting: Baseplate
- Fuse system: DIN
- Degree of Protection IP: IP00
- Mounting Type: Baseplate
- Terminal Type: Bolt
- Product Net Depth (MM): 10.7 cm
- Customs Tariff Number: 85389099
- Minimum Order Quantity: 3
- GTIN (EAN): 6417019814841
- Country of Origin: Slovenia
- Package Level 1 Depth / Length: 24.4 cm
- Package Level 1 Gross Weight: 1.47 kg
- Package Level 1 Height: 12.5 cm
- Package Level 1 Width: 24.9 cm
- Pollution Degree: 3
- Power Loss: at Rated Operating Conditions per Pole 32 W
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Rated Insulation Voltage (Ui): 1000 V AC
- Special Functions: IP00, with phase barriers
- Tightening Torque: acc. IEC 60947-1 32 N·m
