Additional information
| Weight | 318 kg |
|---|---|
| Dimensions | 77 × 96 × 96 cm |

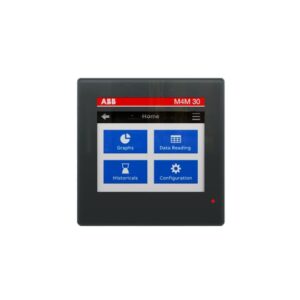

| Extended Product Type | M4 m 30 ROGOWSKI |
| Number of Poles | 3P or 4P |
| Rated Current | 6A |
| Rated Voltage | 46 … 400 (Un) N-L V |
| Rated Frequency | 60Hz |
| Metering | Effective Power |
| Mounting | Front Panel |
| Degree of Protection IP | IP54 |
| Mounting Type | Front Panel |
| Number of Phases | 3-phase |
| Communication | Modbus RTU, Bluetooth |
| Product Net Depth (MM) | 7.7 cm |
| Minimum Order Quantity | 1 |
| Temperature Range | -25…70°C |
| DIN Place Units | 5.5 |
| GTIN (EAN) | 8012542024613 |
| _OG Title | M4 m 30 ROGOWSKI |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Accuracy | Active Energy ±0.5% |
| Additional Information | Rogowski Coils |
| Carbon Footprint (Full Lifecycle) | 97.4121 kg CO₂ eq |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Data Sheet, Technical Information | 9AKK107992A0896 |
| Declaration of Conformity - CE | 9AKK108467A6267 |
| Display Name | M4 m 30 ROGOWSKI |
| E-Number (Finland) | 6701095 |
| E-Number (Norway) | 8002557 |
| ETIM 10 | EC001506 – Electricity meter |
| ETIM 9 | EC001506 – Kilowatt-hour meter |
| EU Data Act Compliance Declaration | 9AKK108471A5057 |
| EcoSolutions Profile | 9AKK108470A1669 |
| End Of Life Disassembling Instructions | 9AKK108470A0840 |
| Environmental Product Declaration - EPD | 9AKK108469A8099 |
| Extended Product Lifetime | Product Upgradability |
| Improved Energy Efficiency for Customers | Product Efficiency – Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Instructions and Manuals | 2CSG445042D0201 |
| Material Resource Reduction (wt. %) | Design for Reduced Resource Consumption – 22 % |
| Measuring Instrument Conformity | Domestic |
| Model Number | Measurement transformer |
| Number of Counter Positions | 8 |
| Number of Digital In/Outputs | 4 Programmable Inputs/Outputs |
| Object Classification Code | P |
| Package Level 1 Gross Weight | 574 g |
| Power Consumption (@P<span style=\ | 10 W |
| Product ID | 2CSG202461R4051 |
| Pulse Output Rate | 1 … 999999 |
| Pulse Output Type | Electrical |
| REACH Date | 20251223 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False – does not contain substances > 0.1 mass percentage |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 54.85 % |
| RoHS Date | 20250314 |
| RoHS Declaration | 9AKK107680A0174 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Type of Indicator | Digital |
| Voltage Range | 50 … 400 V |
| WEEE B2C / B2B | Business To Consumer |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.0 : 27142316 |
