Additional information
| Weight | 353 g |
|---|---|
| Dimensions | 7.7 × 9.6 × 9.6 cm |

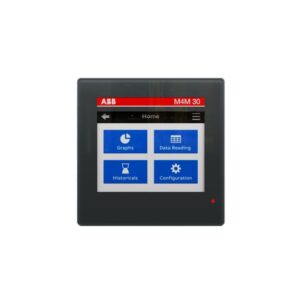

| Extended Product Type | M4 m 30 BACNET |
| Number of Poles | 3P or 4P |
| Rated Current | 6A |
| Rated Voltage | 46 … 400 (Un) N-L V |
| Rated Power | 10W |
| Rated Frequency | 60Hz |
| Metering | Effective Power |
| Mounting | Front Panel |
| Degree of Protection IP | IP54 |
| Mounting Type | Front Panel |
| Number of Phases | 3-phase |
| Communication | BACnet/IP, Bluetooth |
| Product Net Depth (MM) | 7.7 cm |
| Minimum Order Quantity | 1 |
| Temperature Range | -25…70°C |
| DIN Place Units | 5.5 |
| GTIN (EAN) | 8.01254E+12 |
| L1 | |
| L2 | Power Quality & Measurement |
| L3 | Energy Meters |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Accuracy | Active Energy ±0.5% |
| Additional Information | CT (1A, 5A) |
| Extended Product Lifetime | Product Upgradability |
| Improved Energy Efficiency for Customers | Product Efficiency – Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Material Resource Reduction (wt. %) | Design for Reduced Resource Consumption – 22 % |
| Measuring Instrument Conformity | Domestic |
| Number of Counter Positions | 8 |
| Number of Digital In/Outputs | 4 Programmable Inputs/Outputs |
| Package Level 1 Gross Weight | 616 g |
| Power Consumption (@P<span style=\ | 10 W |
| Pulse Output Rate | 1 … 999999 |
| Pulse Output Type | Electrical |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 54.85 % |
| Type of Indicator | Digital |
| Voltage Range | 50 … 400 V |
