Description
Printed circuit board terminals, 1.016 cm, Number of poles: 5, 90°, Solder pin length (l): 4.5 mm, tinned, Pebble grey, Clamping yoke connection, Clamping range, max. : 16 mm², Box

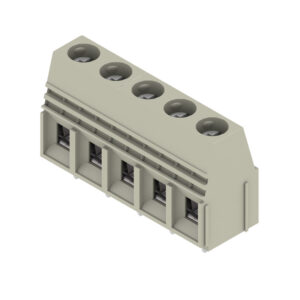

LU 10.16/05/90 4.5SN GY BX 9956400000 Terminal Blocks (PCB Mount)
94.00 AED
On OrderNot held in stock. We order it from the manufacturer, and the lead time — about 3 months on average — starts once they confirm the order.Subject to the manufacturer's final confirmation.
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 94.00 AED |
| 6 - 10 | 92.12 AED |
| 11 - 50 | 90.24 AED |
| 51 - 200 | 88.36 AED |
| 200+ | 86.48 AED |
Out of stock
- Free delivery in the UAE over 150.00 AED, worldwide over 5,000.00 AED
- Prices exclude VAT — VAT is shown at checkout, and exports are zero‑rated
- 15 days to return it if it is not right
- Need project or volume pricing? Use Add to Quote and our team will price it
Description
Additional information
Additional information
| Weight | 48 g |
|---|---|
| Color | Pebble grey |
| Degree of Protection IP | IP20 |
| Execution Type | 27-46-01-01 |
| Minimum Order Quantity | 20 |
| Number of Poles | 5 |
| Product Type | Printed circuit board terminal |
| Rated Cross-Section | 0.14 mm² – 16 mm² |
| Row Spacing | 1.016 cm |
| Terminal Type | Clamping yoke connection |
