Description

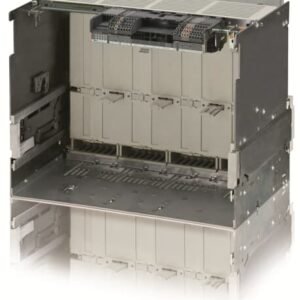

ABB E4.2 W FP Iu=3200 4p HR HR 1SDA073914R1 Air Circuit Breakers, Air Circuit Breakers — manufacturer part number 1SDA073914R1.
FIXED PART WITHDRAWABLE FOR C.BREAKER SACE EMAX2 E4.2 3200 FOUR-POLE WITH REAR HORIZONTAL TERMINALS
Technical data
- Brand: ABB
- Manufacturer part number: 1SDA073914R1
- Extended Product Type: E4.2 W FP Iu=3200 4p HR HR
- Standard: IEC
- Number of Poles: 4P
- Rated Current: 3200A
- Rated Voltage: 900V
- Rated Cross-Section: 3000mm²
- Terminal Type: Bolt
- Product Net Depth (MM): 38.3 cm
- Customs Tariff Number: 85389099
- Minimum Order Quantity: 1
- GTIN (EAN): 8015644778477
- Current Type: AC
- Neutral Pole Current ([%Iu]): 100%
- Package Level 1 Depth / Length: 78.5 cm
- Package Level 1 Gross Weight: 69 kg
- Package Level 1 Height: 61 cm
- Package Level 1 Width: 57 cm
- Product Name: Fixed Part
- Rated Impulse Withstand Voltage (Uimp): acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui): AC 1000 V
- Recommended Screw Driver: M12
- Tightening Torque: 70 N·m
