Additional information
| Weight | 390 g |
|---|---|
| Dimensions | 6.9 × 7 × 8.5 cm |

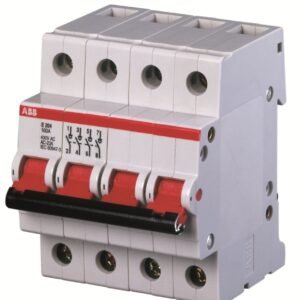

| Extended Product Type | E204/125R |
| Standard | IEC/EN 60947-3 |
| Number of Poles | 4P |
| Rated Current | 125A |
| Rated Voltage | 400V |
| Rated Frequency | 50/60Hz |
| Breaking Capacity | 6KA |
| Frame size | acc. to DIN 43880 3 |
| Color | grey |
| Mounting | DIN-Rail |
| Degree of Protection IP | IP10 |
| Mounting Type | DIN-Rail |
| Product Net Depth (MM) | 6.9 cm |
| Minimum Order Quantity | 2 |
| DIN Place Units | 4 |
| GTIN (EAN) | 4.01678E+12 |
| Surge protection | 4 kV |
| L1 | |
| L2 | Power Distribution |
| L3 | Busbars & Busbar Systems |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Accessories Available | Yes |
| Certification Agency | EN |
| Extended Product Lifetime | Product Durability |
| Input Voltage Type | AC |
| Number of Contacts CO | 0 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 4 |
| Overvoltage Category | IV |
| Package Level 1 Gross Weight | 825 g |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.1 W |
| Rated Conditional Short-Circuit Current (Inc) | 6 kA |
| Recommended Screw Driver | Pozidriv 2 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 81.9 % |
| Switch Type | Off |
