Additional information
| Weight | 55 kg |
|---|---|
| Dimensions | 38.3 × 40.7 × 42.5 cm |

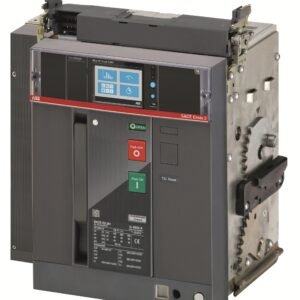

| Extended Product Type | E2.2N 2500 Ekip Touch LSIG 4p WMP |
| Standard | IEC |
| Number of Poles | 4P |
| Execution Type | EL |
| Rated Current | 2500A |
| Rated Voltage | 690V |
| Breaking Capacity | 66KA |
| Trip Unit | Ekip Touch LSIG |
| Breaking Class | N |
| Rated Cross-Section | 180 cm² |
| Product Net Depth (MM) | 38.3 cm |
| Customs Tariff Number | 85362090 |
| Minimum Order Quantity | 1 |
| GTIN (EAN) | 8.01564E+12 |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Air Circuit Breakers |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Mechanical Durability | 20000 cycle |
| Neutral Pole Current ([%Iu]) | 100% |
| Package Level 1 Depth / Length | 61.5 cm |
| Package Level 1 Gross Weight | 60 kg |
| Package Level 1 Height | 61 cm |
| Package Level 1 Width | 51.5 cm |
| Power Loss | 550 W |
| Product Name | Air Circuit Breaker |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100% |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kA |
| Recommended Screw Driver | M12 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 79.3 % |
| Suitable for IT Networks | Yes, 690V |
