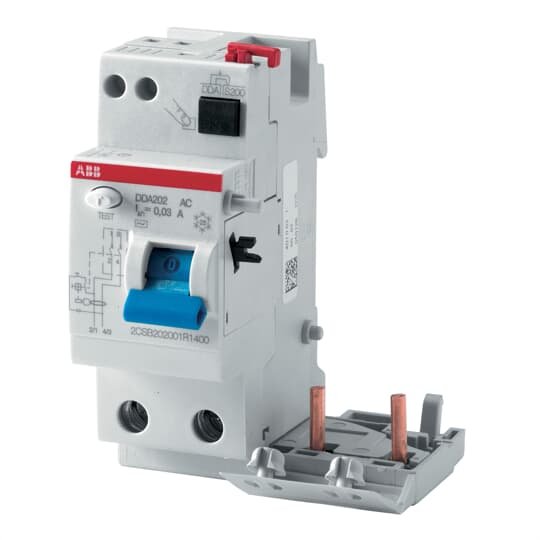

Residual Current Device Block DDA200 – 2P – 30 mA – 63 A – Type AC
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 0.00 AED |
| 6 - 10 | 0.00 AED |
| 11 - 50 | 0.00 AED |
| 51 - 200 | 0.00 AED |
| 200+ | 0.00 AED |
The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial.
| Weight | 175 g |
|---|---|
| Dimensions | 6.9 × 7 × 9.3 cm |
| Extended Product Type | DDA202 AC-63/0.03 |
| Standard | IEC/EN 61009 Ann0 g |
| Number of Poles | 2P |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Rated Frequency | 60Hz |
| Rated Residual Current | 30mA |
| Breaking Capacity | 1KA |
| Degree of Protection IP | IP2X |
| Tripping Characteristic | Instantaneous |
| Rated Cross-Section | 0…0.25 mm² |
| Product Net Depth (MM) | 6.9 cm |
| Minimum Order Quantity | 1 |
| Temperature Range | -25…50°C |
| DIN Place Units | 4 |
| GTIN (EAN) | 8012542791300 |
| Resistance | 20 Cycles with Load 0.8 In: 1 g or 0.1 mm 5…150…5 Hz |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Electrical Endurance | 10000 cycle |
| Extended Product Lifetime | Product Durability |
| Leakage Current Type | AC |
| Number of Modules | 4 |
| Package Level 1 Gross Weight | 245 g |
| Pollution Degree | 2 |
| Power Loss | Total 5 W |
| Power Supply Connection | Arbitrary |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 69.47 % |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard – 85.84 % |
| Test Voltage (Ut) | 195…254 V |
| Tightening Torque | 2.8 N·m |
| Type of Residual Current | Type AC |
