Additional information
| Weight | 25 g |
|---|---|

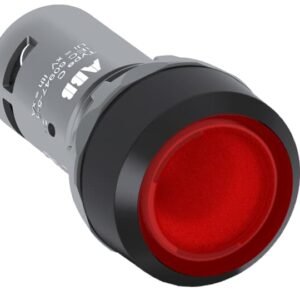

| Extended Product Type | CP1-11R-10 |
| Rated Voltage | 24VAC |
| Rated Frequency | 50/60Hz |
| Color | red |
| Application | Momentary |
| Degree of Protection IP | IP66 |
| Rated Cross-Section | 0.5…1.5 mm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 5.5 cm |
| Customs Tariff Number | 8536508000 |
| Minimum Order Quantity | 10 |
| Temperature Range | -25…+70°C |
| GTIN (EAN) | 7.3205E+12 |
| L1 | |
| L2 | HMI & Operator Panels |
| L3 | Pushbutton Stations & Control Boxes |
| Actuator Type | Flush |
| Bezel Material | Plastic |
| Connecting Capacity UL/CSA | 1x 22…14 AWG |
| Country of Origin | India |
| Enclosure Type NEMA | Type1 |
| Illumination | Illuminated |
| Lamp Type | LED 24V AC/DC |
| Mechanical Durability | 0.5 million |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Package Level 1 Depth / Length | 23.5 cm |
| Package Level 1 Gross Weight | 254 g |
| Package Level 1 Height | 5 cm |
| Package Level 1 Width | 12.5 cm |
| Pollution Degree | 3 |
| Power Loss | Maximum 2.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
