Additional information
| Weight | 690 g |
|---|---|

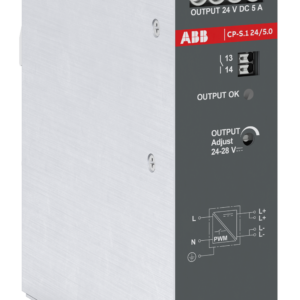

| Extended Product Type | CP-S.1 24/5.0 |
| Standard | IEC/EN 61010-1 |
| Rated Current | 5A |
| Rated Voltage | 24VDC |
| Rated Power | 120W |
| Rated Frequency | 50/60Hz |
| Mounting | 1 |
| Application | Switch mode power supply |
| Row Spacing | Other Device Same Type, Horizontal 3 cm |
| Degree of Protection IP | IP20 |
| Mounting Type | TH35-15 (35 x 1.5 cm Mounting Rail) acc. to IEC 60715 |
| Number of Phases | 1-phase |
| Product Net Depth (MM) | 12.7 cm |
| Customs Tariff Number | 85044095 |
| Minimum Order Quantity | 1 |
| Temperature Range | -25…+70°C |
| GTIN (EAN) | 4.01361E+12 |
| resistance | ±0.15 mm 10 … 58 Hz |
| Surge protection | Level 4 Line-to-Ground 4 kV |
| L1 | Automation & Control |
| L2 | PLCs & Controllers |
| L3 | DIN Rail Power Supplies for PLC |
| Characteristic of Output | U/I characteristic curve with power reserve |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 … 4 mm² |
| Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-12 AWG |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.5 … 4 mm² |
| Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 20-12 AWG |
| Country of Origin | Germany |
| Electromagnetic Compatibility (EMC) | Immunity – Class B |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kV |
| Hold-up Time | (230 V AC) min. 20 ms |
| Input Voltage (Uin) | 85 … 264 V AC |
| Maximum Operating Altitude Permissible | 5000 m |
| Output Current Maximum (Iout) | 7.5 A |
| Output Voltage (Uout) | 24 V DC |
| Package Level 1 Depth / Length | 15.5 cm |
| Package Level 1 Gross Weight | 800 g |
| Package Level 1 Height | 16.9 cm |
| Package Level 1 Width | 6.4 cm |
| Package Level 2 Depth / Length | 60 cm |
| Package Level 2 Gross Weight | 17.5 kg |
| Package Level 2 Height | 19 cm |
| Package Level 2 Units | carton 21 piece |
| Package Level 2 Width | 39.3 cm |
| Pollution Degree | 2 |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 4 kV |
| Rated Input Voltage (UIN) | 100 … 240 V AC |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Recommended Screw Driver | PH1 |
| Tightening Torque | Input Circuit 0.5 N·m |
| Tightening Torque UL/CSA | Input Circuit 4.4 in·lb |
| Typical Input Current | (115 V AC) 1.24 A |
| Wire Stripping Length | Auxiliary Circuit 7 mm |
