Additional information
| Weight | 252 g |
|---|---|
| Dimensions | 5.75 × 7.1 × 9.1 cm |

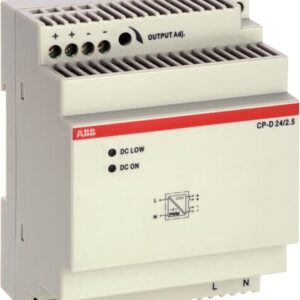

| Extended Product Type | CP-D 24/2.5 |
| Standard | CAN/CSA C22.2 No.107.1 |
| Rated Current | 2.5A |
| Rated Voltage | 24VDC |
| Rated Power | 60W |
| Rated Frequency | 50/60Hz |
| Mounting | 1 |
| Application | Switch mode power supply |
| Row Spacing | Electrical Conductive Board, Horizontal 2.5 cm |
| Degree of Protection IP | IP20 |
| Mounting Type | TH35-15 (35 x 1.5 cm Mounting Rail) acc. to IEC 60715 |
| Number of Phases | 1-phase |
| Product Net Depth (MM) | 5.75 cm |
| Customs Tariff Number | 85044095 |
| Minimum Order Quantity | 1 |
| Temperature Range | -40…+70°C |
| GTIN (EAN) | 4.01678E+12 |
| Surge protection | Level 3 Line-to-Line 2 kV |
| L1 | |
| L2 | PLCs & Controllers |
| L3 | DIN Rail Power Supplies for PLC |
| Characteristic of Output | U/I characteristic curve |
| Conducted Disturbances Immunity acc. to IEC 61000-4-6 | Level 3 10 V |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.2 … 2.5 mm² |
| Connecting Capacity Input Circuit UL/CSA | Rigid 24-12 AWG |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.2 …. 2.5 mm² |
| Connecting Capacity Output Circuit UL/CSA | Rigid 24-12 AWG |
| Country of Origin | Germany |
| Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4 | Level 4 Power Supply Port Signal 4 kV |
| Electromagnetic Compatibility (EMC) | Emission – Class B |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kV |
| Input Voltage (Uin) | 90 … 264 V AC |
| Maximum Operating Altitude Permissible | 4850 m |
| Output Current Maximum (Iout) | 2.5 A |
| Output Voltage (Uout) | 24 V DC |
| Package Level 1 Depth / Length | 13.4 cm |
| Package Level 1 Gross Weight | 311 g |
| Package Level 1 Height | 8.7 cm |
| Package Level 1 Width | 9.1 cm |
| Pollution Degree | 2 |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 3 kV |
| Rated Input Voltage (UIN) | 100 … 240 V AC |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Recommended Screw Driver | PH1 |
| Tightening Torque | Input Circuit 0.7 N·m |
| Tightening Torque UL/CSA | Input Circuit 6 in·lb |
| Wire Stripping Length | Input Circuit 7 mm |
