$999.87

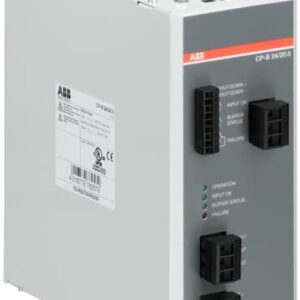

CP-B 24/20.0 Buffer module 24 V / 20 A, energy storage 8000 Ws
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | $999.87 |
| 6 - 10 | $979.87 |
| 11 - 50 | $959.88 |
| 51 - 200 | $939.88 |
| 200+ | $919.88 |
Out of stock
CP-B 24/20.0 Buffer module 24 V / 20 A, energy storage 8000 Ws
| Weight | 2.2 kg |
|---|---|
| Dimensions | 21.6 × 8.4 × 19.8 cm |
| Extended Product Type | CP-B 24/20.0 |
| Standard | CAN/CSA C22.2 No.107.1 |
| Rated Current | 20A |
| Rated Voltage | 24VDC |
| Rated Power | 480W |
| Rated Frequency | DC |
| Mounting | 1 |
| Application | Buffer module |
| Row Spacing | Other Device Same Type, Vertical 8 cm |
| Degree of Protection IP | IP20 |
| Mounting Type | TH35-15 (35 x 1.5 cm Mounting Rail) acc. to IEC 60715 |
| Product Net Depth (MM) | 21.6 cm |
| Customs Tariff Number | 85044083 |
| Minimum Order Quantity | 1 |
| Temperature Range | -40…+60°C |
| GTIN (EAN) | 4.01678E+12 |
| L1 | |
| L2 | Enclosures & Cabinets |
| L3 | Enclosure Accessories (Locks, Glands), Hinges |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.2 … 4 mm² |
| Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 24-12 AWG |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.2 … 4 mm² |
| Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 24-12 AWG |
| Input Voltage (Uin) | 23.4 … 29 V DC |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Output Voltage (Uout) | 24 V DC |
| Package Level 1 Depth / Length | 33.5 cm |
| Package Level 1 Gross Weight | 3 kg |
| Package Level 1 Height | 15 cm |
| Package Level 1 Width | 32 cm |
| Pollution Degree | 2 |
| Rated Input Voltage (UIN) | 24 V DC |
| Wire Stripping Length | Input Circuit 7 mm |
