Additional information
| Weight | 136 g |
|---|---|
| Dimensions | 10.37 × 2.25 × 8.56 cm |

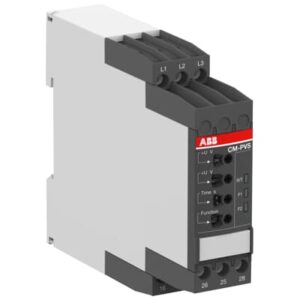

| Extended Product Type | CM-PVS.81S |
| Standard | CAN/CSA C22.2 No.14 |
| Rated Frequency | 50/60Hz |
| Mounting | 1 … 6 |
| Application | Phase failure detection |
| Degree of Protection IP | IP50 |
| Mounting Type | TH35-15 (35 x 1.5 cm Mounting Rail) acc. to IEC 60715 |
| Rated Cross-Section | 0.5…2.5 mm² |
| Setting range | 200…400V |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 10.37 cm |
| Customs Tariff Number | 85364900 |
| Minimum Order Quantity | 1 |
| Temperature Range | -25…+60°C |
| GTIN (EAN) | 4.01678E+12 |
| L1 | |
| L2 | Safety & Machine Guarding |
| L3 | Safety Relays & Controllers |
| ABB EcoSolutions | Yes |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Contact Rating UL/CSA | B300 |
| Electrical Durability | AC-12 100000 cycle |
| Flammability According to UL94 | V-0 |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Minimum Switching Capacity | 24 V |
| Output | 2 C/O Contacts |
| Overvoltage Category | III |
| Package Level 1 Depth / Length | 3 cm |
| Package Level 1 Gross Weight | 161 g |
| Package Level 1 Height | 10.9 cm |
| Package Level 1 Width | 9.7 cm |
| Pilot Duty UL/CSA | B300 |
| Pollution Degree | 3 |
| Rated Control Supply Voltage (Us) | (L-L) 200 … 400 V AC |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 6 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 600 V |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Recommended Screw Driver | 0.8 x 4 |
| Short-Circuit Protective Devices | Output Circuit NC – F Type Fuses 6 A |
| Tightening Torque | 0.6 … 0.8 N·m |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Wire Stripping Length | 8 mm |
