Additional information
| Weight | 168 g |
|---|---|
| Dimensions | 0.109 × 0.065 × 0.65 mm |

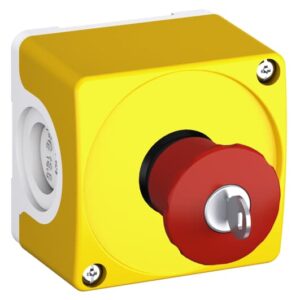

| Extended Product Type | CEPY1-1006 |
| Rated Voltage | 300V |
| Material | Plastic |
| Color | Yellow/Light grey |
| Degree of Protection IP | IP66 |
| Terminal type | Screw Terminals |
| Product Net Depth (MM) | 10.9 cm |
| Customs Tariff Number | 85369001 |
| Minimum Order Quantity | 1 |
| Temperature Range | -25…+70°C |
| GTIN (EAN) | 7320500383254 |
| _OG Title | CEPY1-1006 |
| Accessory Type | Enclosure |
| CB Certificate | CN54150 |
| CQC Certificate | CQC2003010305054693 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| DNV GL Certificate | 9AKK107046A3749 |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Declaration of Conformity - CCC | 2020980305001187 |
| Declaration of Conformity - CE | 2CMT2019-005802 |
| Declaration of Conformity - UKCA | 2CMT2020-006122 |
| Display Name | CEPY1-1006 |
| E-Number (Sweden) | 3705519 |
| ETIM 6 | EC000225 – Control circuit devices combination in enclosure |
| ETIM 7 | EC000225 – Control circuit devices combination in enclosure |
| ETIM 8 | EC000225 – Control circuit devices combination in enclosure |
| ETIM 9 | EC000225 – Control circuit devices combination in enclosure |
| Enclosure Type NEMA | Type1 |
| Instructions and Manuals | 1SFC151011M0201 |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Object Classification Code | S |
| Package Level 1 Depth / Length | 23.5 cm |
| Package Level 1 Gross Weight | 175 g |
| Package Level 1 Height | 12 cm |
| Package Level 1 Width | 16.5 cm |
| Pilot Duty UL/CSA | C300 |
| Product ID | 1SFA619821R1006 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 30d6dc3d-2e84-48d0-9638-9b16831c2b99 Sweden |
| Simplified SCIP | cd06db48-a75d-4348-8274-86dd8bf55626 Germany |
| Tightening Torque | 0.8 N·m |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| UNSPSC | 39121326 |
| WEEE Category | Product Not in WEEE Scope |
| Wire Stripping Length | 8 mm |
| cURus Certificate | UL_E496500-20171020 |
| eClass | V11.0 : 27371216 |
