46.00 AED

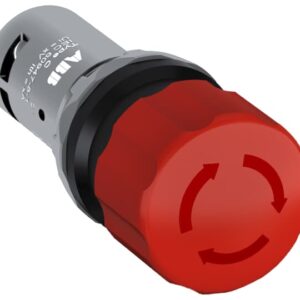

CE3T-10R-02 Emergency stop
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 46.00 AED |
| 6 - 10 | 45.08 AED |
| 11 - 50 | 44.16 AED |
| 51 - 200 | 43.24 AED |
| 200+ | 42.32 AED |
Out of stock
The CE3T-10R-02 Emergency stop is: Compact – Emergency stop – Twist release – Maintained – Mushroom 3 cm – Red – Non-illuminated – 2NC – 0 NO – 2 NC – 24 … 300 V
This Emergency stop is part of ABB’s compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
| Weight | 38 g |
|---|---|
| Extended Product Type | CE3T-10R-02 |
| Rated Voltage | 300V |
| Rated Frequency | 50/60Hz |
| Color | red |
| Application | Maintained |
| Degree of Protection IP | IP66 |
| Rated Cross-Section | 0.5…1.5 mm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 7.3 cm |
| Customs Tariff Number | 8536508000 |
| Minimum Order Quantity | 10 |
| Temperature Range | -25…+70°C |
| GTIN (EAN) | 7320500260753 |
| Actuator Type | Mushroom 3 cm |
| Connecting Capacity UL/CSA | 1x 22…14 AWG |
| Country of Origin | China |
| Enclosure Type NEMA | Type1 |
| Illumination | Non-illuminated |
| Mechanical Durability | 50000 cycle |
| Number of Auxiliary Contacts NC | 2 |
| Number of Auxiliary Contacts NO | 0 |
| Package Level 1 Depth / Length | 9 cm |
| Package Level 1 Gross Weight | 40 g |
| Package Level 1 Height | 3.5 cm |
| Package Level 1 Width | 16.5 cm |
| Pollution Degree | 3 |
| Power Loss | Maximum 5 W |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A |
| Sub-Function | Twist release |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
