Additional information
| Weight | 68 g |
|---|---|

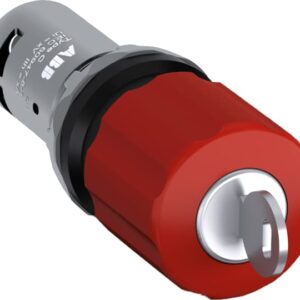

| Extended Product Type | CE3K1-10R-11 |
| Rated Voltage | 300V |
| Rated Frequency | 50/60Hz |
| Color | Red |
| Application | Maintained |
| Degree of Protection IP | IP66 |
| Rated Cross-Section | 0.5…1.5 mm² |
| Terminal type | Screw Terminals |
| Product Net Depth (MM) | 10.3 cm |
| Customs Tariff Number | 8536508000 |
| Minimum Order Quantity | 10 |
| Temperature Range | -25…+70°C |
| GTIN (EAN) | 7.3205E+12 |
| L1 | Automation & Control |
| L2 | Safety & Machine Guarding |
| L3 | Emergency Stop Buttons & Modules |
| Actuator Type | Mushroom 3 cm |
| Connecting Capacity UL/CSA | 1x 22…14 AWG |
| Country of Origin | China |
| Enclosure Type NEMA | Type1 |
| Illumination | Non-illuminated |
| Key Code | Key code 71 |
| Mechanical Durability | 50000 cycle |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Package Level 1 Depth / Length | 9 cm |
| Package Level 1 Gross Weight | 70 g |
| Package Level 1 Height | 3.5 cm |
| Package Level 1 Width | 16.5 cm |
| Pollution Degree | 3 |
| Power Loss | Maximum 5 W |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A |
| Sub-Function | Key release |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
