Additional information
| Weight | 24 g |
|---|---|

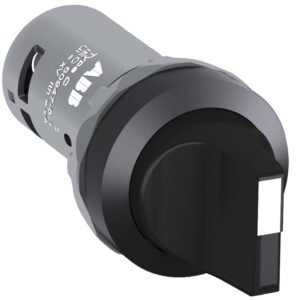

| Extended Product Type | C3SS1-10B-11 |
| Rated Voltage | 300V |
| Rated Frequency | 50/60Hz |
| Color | black |
| Application | Maintained |
| Degree of Protection IP | IP66 |
| Rated Cross-Section | 0.5…1.5 mm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 7.2 cm |
| Customs Tariff Number | 8536508000 |
| Minimum Order Quantity | 10 |
| Temperature Range | -25…+70°C |
| GTIN (EAN) | 7.3205E+12 |
| L1 | |
| L2 | HMI & Operator Panels |
| L3 | Pushbutton Stations & Control Boxes |
| Actuator Type | Short handle |
| Bezel Material | Plastic |
| Connecting Capacity UL/CSA | 1x 22…14 AWG |
| Enclosure Type NEMA | Type1 |
| Illumination | Non-illuminated |
| Maintained Positions | A, B, C |
| Mechanical Durability | 0.5 million |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Package Level 1 Depth / Length | 12.5 cm |
| Package Level 1 Gross Weight | 240 g |
| Package Level 1 Height | 3.5 cm |
| Package Level 1 Width | 23.5 cm |
| Power Loss | Maximum 5 W |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A |
| Sub-Function | 3-position |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
