Description
The MCB 10kA BMSW1MC40 provides overcurrent and short-cuicuit protection for household and similar installations. This product is manufactured according to IEC Standards for the markets where it is required.

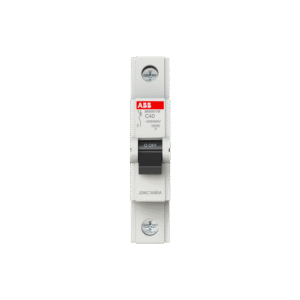

BMSW1MC40 1SYS671062R0404 Miniature Circuit Breakers (MCB)
14.00 AED
BMSW1MC40 Miniature Circuit Breaker C-Char; 10 kA; 40A; 1P
In stock in our warehouse — delivered within 1 working day inside the UAE.
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 14.00 AED |
| 6 - 10 | 13.72 AED |
| 11 - 50 | 13.44 AED |
| 51 - 200 | 13.16 AED |
| 200+ | 12.88 AED |
In stock
- In stock — order today for next‑day delivery in the UAE
- Free delivery in the UAE over 150.00 AED, worldwide over 5,000.00 AED
- Prices exclude VAT — VAT is shown at checkout, and exports are zero‑rated
- 15 days to return it if it is not right
- Need project or volume pricing? Use Add to Quote and our team will price it
Description
Additional information
Additional information
| Weight | 111 g |
|---|---|
| Dimensions | 7.48 × 1.74 × 8.85 cm |
| Extended Product Type | BMSW1MC40 |
| Number of Poles | 1P |
| Rated Current | 40A |
| Rated Voltage | 400V |
| Rated Frequency | 50/60Hz |
| Breaking Capacity | 10KA |
| Breaking Class | 3 |
| Degree of Protection IP | IP20 |
| Tripping Characteristic | C |
| Rated Cross-Section | 35mm² |
| Product Net Depth (MM) | 7.48 cm |
| Minimum Order Quantity | 1 |
| Temperature Range | -25…+55°C |
| GTIN (EAN) | 8906176430875 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 10000 cycle |
| Package Level 1 Gross Weight | 0.119 kg |
| Pollution Degree | 2 |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Recommended Screw Driver | Pozidriv 2 |
