$3.00

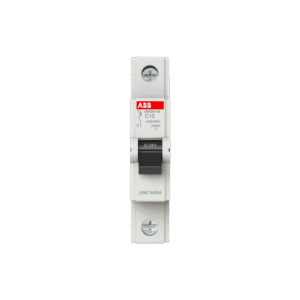

BMSW1MC10 Miniature Circuit Breaker C-Char; 10 kA; 10A; 1P
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | $3.00 |
| 6 - 10 | $2.94 |
| 11 - 50 | $2.88 |
| 51 - 200 | $2.82 |
| 200+ | $2.76 |
In stock
The MCB 10kA BMSW1MC10 provides overcurrent and short-cuicuit protection for household and similar installations. This product is manufactured according to IEC Standards for the markets where it is required.
| Weight | 96 g |
|---|---|
| Electrical Endurance | 20000 cycle |
| Mechanical Endurance | 20000 cycle |
| Package Level 1 Gross Weight | 0.104 kg |
| Pollution Degree | 2 |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Recommended Screw Driver | Pozidriv 2 |
| Breaking Capacity | 10kA |
| Breaking Class | 3 |
| Degree of Protection IP | IP20 |
| Extended Product Type | BMSW1MC10 |
| GTIN (EAN) | 8.90618E+12 |
| L1 | Electrical |
| L2 | Switchgear & Contactors |
| L3 | Miniature Circuit Breakers (MCB) |
| Minimum Order Quantity | 1 |
| Number of Poles | 1P |
| Product Net Depth (MM) | 7.48 cm |
| Rated Cross-Section | 3.5 cm² |
| Rated Current | 10A |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V |
| Temperature Range | -25…+55°C |
| Tripping Characteristic | C |
