Description
The MCB BMSW1B20 provides overcurrent and short-cuicuit protection for household and similar installations. This product is manufactured according to IEC Standards for the markets where it is required.

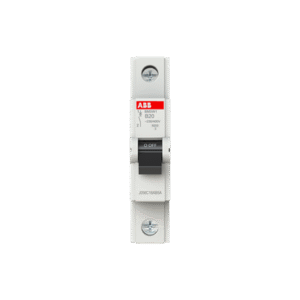

BMSW1B20 1SYS651062R0205 Miniature Circuit Breakers (MCB)
9.00 AED
BMSW1B20 Miniature Circuit Breaker B-Char; 6 kA; 20 A; 1P
Not held in stock. We order it from the manufacturer, and the lead time — about 2 months on average — starts once they confirm the order.Subject to the manufacturer's final confirmation.
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 9.00 AED |
| 6 - 10 | 8.82 AED |
| 11 - 50 | 8.64 AED |
| 51 - 200 | 8.46 AED |
| 200+ | 8.28 AED |
Out of stock
- Free delivery in the UAE over 150.00 AED, worldwide over 5,000.00 AED
- Prices exclude VAT — VAT is shown at checkout, and exports are zero‑rated
- 15 days to return it if it is not right
- Need project or volume pricing? Use Add to Quote and our team will price it
Description
Additional information
Additional information
| Weight | 110 g |
|---|---|
| Dimensions | 7.48 × 1.74 × 8.85 cm |
| Extended Product Type | BMSW1B20 |
| Number of Poles | 1P |
| Rated Current | 20A |
| Rated Voltage | 400V |
| Rated Frequency | 50/60Hz |
| Breaking Capacity | 6KA |
| Breaking Class | 3 |
| Degree of Protection IP | IP20 |
| Tripping Characteristic | B |
| Rated Cross-Section | 35mm² |
| Product Net Depth (MM) | 7.48 cm |
| Minimum Order Quantity | 1 |
| Temperature Range | -25…+55°C |
| GTIN (EAN) | 8906176430035 |
| Electrical Endurance | 20000 cycle |
| Mechanical Endurance | 20000 cycle |
| Package Level 1 Gross Weight | 0.111 kg |
| Pollution Degree | 2 |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Recommended Screw Driver | Pozidriv 2 |
