$63.44
A1N 125 TMF 80-800 4p F F
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | $63.44 |
| 6 - 10 | $62.17 |
| 11 - 50 | $60.90 |
| 51 - 200 | $59.63 |
| 200+ | $58.36 |
In stock

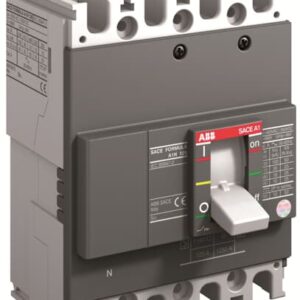

C.BREAKER FORMULA A1N 125 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 80-800 A
| Weight | 1 kg |
|---|---|
| Electrical Durability | 1500 cycle |
| Mechanical Durability | Nr. Operations 8500 cycle |
| Opening Time | CB with SOR 15 ms |
| Package Level 1 Depth / Length | 11.05 cm |
| Package Level 1 Gross Weight | 1.05 kg |
| Package Level 1 Height | 12.4 cm |
| Package Level 1 Width | 13.65 cm |
| Power Loss | at Rated Operating Conditions per Pole 9 W |
| Product Name | Moulded Case Circuit Breaker |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Breaking Capacity | 100kA |
| Breaking Class | N |
| Customs Tariff Number | 85362090 |
| Execution Type | TM |
| Extended Product Type | A1N 125 TMF 80-800 4p F F |
| GTIN (EAN) | 8.01564E+12 |
| L1 | Electrical |
| L2 | Switchgear & Contactors |
| L3 | Moulded Case Circuit Breakers (MCCB) |
| Minimum Order Quantity | 1 |
| Number of Poles | 4P |
| Product Net Depth (MM) | 6 cm |
| Rated Current | 80A |
| Rated Voltage | 550VAC |
| Standard | IEC |
| Terminal type | Front |
| Trip Unit | TMF |
