51.37 AED
In StockBulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 51.37 AED |
| 6 - 10 | 50.34 AED |
| 11 - 50 | 49.32 AED |
| 51 - 200 | 48.29 AED |
| 200+ | 47.26 AED |
In stock

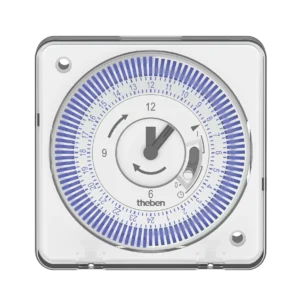

Analogue time switch, 1 channel, 3 days power reserve
Full technical specifications are listed under Additional Information. Download datasheet (PDF). Source: Theben (manufacturer).
| Operating voltage | 110 – 230 V AC |
|---|---|
| Frequency | 50 – 60 Hz |
| Number of channels | 1 |
| Installation type | Front panel installation/wall installation |
| Type of connection | Screw terminals |
| Program | Daily program |
| Power reserve | 3 days |
| Switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 8 A |
| Shortest switching times | 15 min |
| Programmable every | 15 min |
| Time accuracy at 25 °C | ≤ ± 5 s/day (quartz) |
| Type of contact | Changeover contact |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Ambient temperature | -20°C … 55°C |
