64.38 AED
In StockBulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 64.38 AED |
| 6 - 10 | 63.09 AED |
| 11 - 50 | 61.80 AED |
| 51 - 200 | 60.52 AED |
| 200+ | 59.23 AED |
In stock

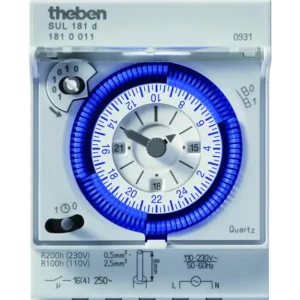

Analogue time switch, 1 channel, Daily program
Full technical specifications are listed under Additional Information. Download datasheet (PDF). Source: Theben (manufacturer).
| Operating voltage | 110 – 230 V AC |
|---|---|
| Frequency | 50 – 60 Hz |
| Number of channels | 1 |
| Width | 3 modules |
| Installation type | DIN rail |
| Type of connection | DuoFix spring terminals |
| Drive | Quartz-controlled stepper motor |
| Program | Daily program |
| Power reserve | 200 hours , approx. 100 hours at 110 V |
| Switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 4 A |
| Incandescent/halogen lamp load | 1100 W |
| LED lamp | 20 W |
| LED lamp 2-8 W | 180 W |
| LED lamp > 8 W | 180 W |
| Shortest switching times | 15 min |
| Programmable every | 15 min |
| Time accuracy at 25 °C | ≤ ± 1 s/day (quartz) |
| Type of contact | Changeover contact |
| Switching output | Potential-free and phase-independent |
| Number of switching segments | 96 |
| Stand-by consumption | ~0.5 W |
| Capacity loss max. | 1.3 W |
| Test approval | VDE |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Ambient temperature | -20°C … 55°C |
