Description

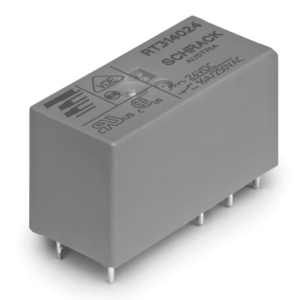

RT314524
Schrack RT1-series power PCB / plug-in relay with a single changeover (C/O) contact and 24 V AC coil. Switches up to 16 A at 250 V AC through AgNi 90/10 contacts with 5 kV reinforced coil-contact insulation. Suited for PCB mounting or RT78 DIN-rail sockets; cULus, cCSAus and VDE approved.
Key features
- Coil voltage: 24 V AC (50 Hz)
- Coil resistance: approx. 350 Ohm
- Coil power: 0.7 VA
- Contact configuration: 1 C/O (SPDT changeover)
- Contact material: AgNi 90/10
- Rated current: 16 A
Full technical specifications are listed under Additional Information. Datasheet (PDF). Source: TE/Schrack Power PCB Relay RT1 datasheet.
